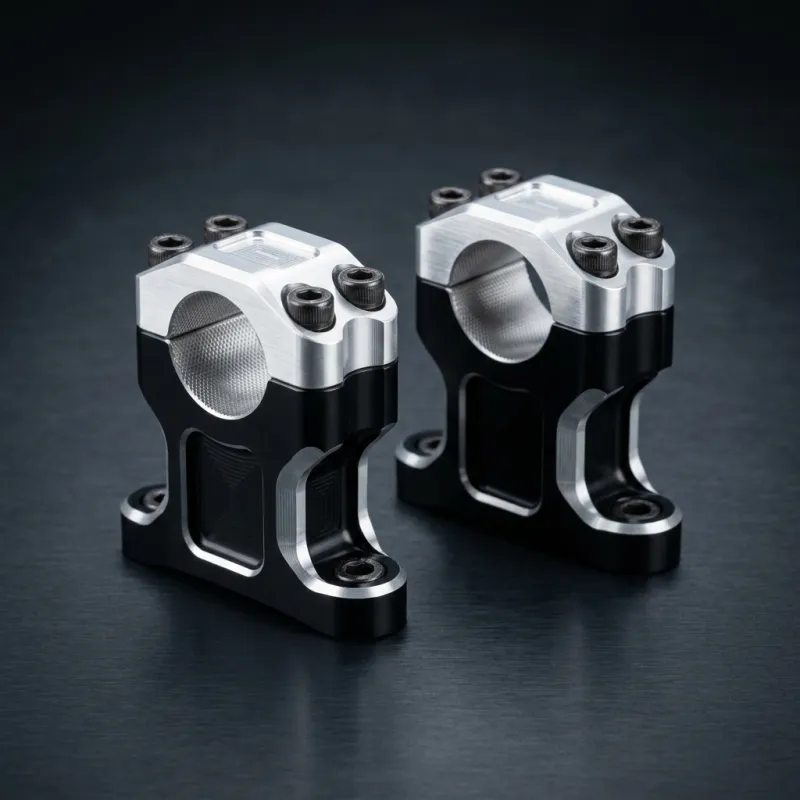

GritShift Handlebar Riser Kit 50mm

The GritShift Handlebar Riser Kit 50mm is an essential ergonomic upgrade engineered to solve the cramped, low cockpit geometry of the Sur-Ron electric dirt bike. Designed by GritShift in Florida for adult riders, this precision-machined 6061-T6 billet aluminum kit raises the handlebar clamp height by a full 50mm (2 inches), transforming rider posture, trail control, and long-ride comfort.

The factory Sur-Ron cockpit was designed around a compact, smaller rider profile. Adult riders over 5'8" are forced to hunch forward in an unnatural riding position, creating severe lower back fatigue, neck strain, and knee pain during standing trail sections. Furthermore, a low handlebar height pulls the rider's center of gravity too far forward over the front wheel, making the bike twitchy on steep descents.

Installing the GritShift 50mm Risers elevates the handlebar clamp into a balanced, natural standing attack position. With an upright torso and relaxed arms, riders can absorb trail impacts through their legs and easily shift weight rearward over obstacles.

Cockpit Geometry & Control Authority: Raising the bars by 50mm broadens steering leverage, making it effortless to muscle the front wheel through deep sand ruts, loose rock gardens, and technical switchbacks without arm pump.

Cable Routing & Slack Verification: On most stock Light Bee X and Ultra Bee models, the factory brake hoses, throttle wire, and display cables have sufficient slack once unclipped from the upper frame guides. Always turn the handlebars fully lock-to-lock in both directions before riding to verify there is zero cable tension or binding.

Installation Guidelines: Remove the factory handlebar clamp bolts, position the 50mm riser blocks on the upper fork crown, set the handlebar, and torque the supplied high-grade metric hardware evenly in an X-pattern to 8–10 Nm.

Frequently Asked Questions:

Q: Do I need extended brake lines or cables to install the 50mm risers? A: No. Factory brake lines and wiring harnesses have enough service loop to accommodate the 50mm rise once unclipped from the upper frame guides.

Q: How does a 50mm handlebar riser improve rider posture? A: It allows adult riders over 5'8" to stand upright in a neutral attack position with bent knees, eliminating lower back fatigue and improving weight transfer.

Q: What material is used for the GritShift risers? A: They are CNC-machined from solid 6061-T6 aerospace aluminum billet with a durable anodized finish.

Q: What diameter handlebars do these risers accept? A: The risers accept standard 7/8" (22.2mm) handlebars as well as 31.8mm bars with appropriate clamp reducers.

Q: What is the torque specification for the clamp bolts? A: Torque all four clamp bolts evenly in an X-pattern to 8–10 Nm, maintaining an equal gap between clamp halves.

Ergonomic Attack Posture & Weight Transfer: Standing in the attack position with 50mm handlebar risers aligns the rider's shoulders directly over the steering axis. This upright posture allows riders to push down through their legs to generate rear tire traction during steep climbs while maintaining full steering control over loose rocks.

Billet Clamping Rigidity & Anti-Twist Geometry: Machined from a single block of 6061-T6 aluminum, the riser blocks feature precision-broached handlebar clamping surfaces that grip the bar firmly without crushing the tubing walls, preventing handlebar slip during hard downhill landings.
