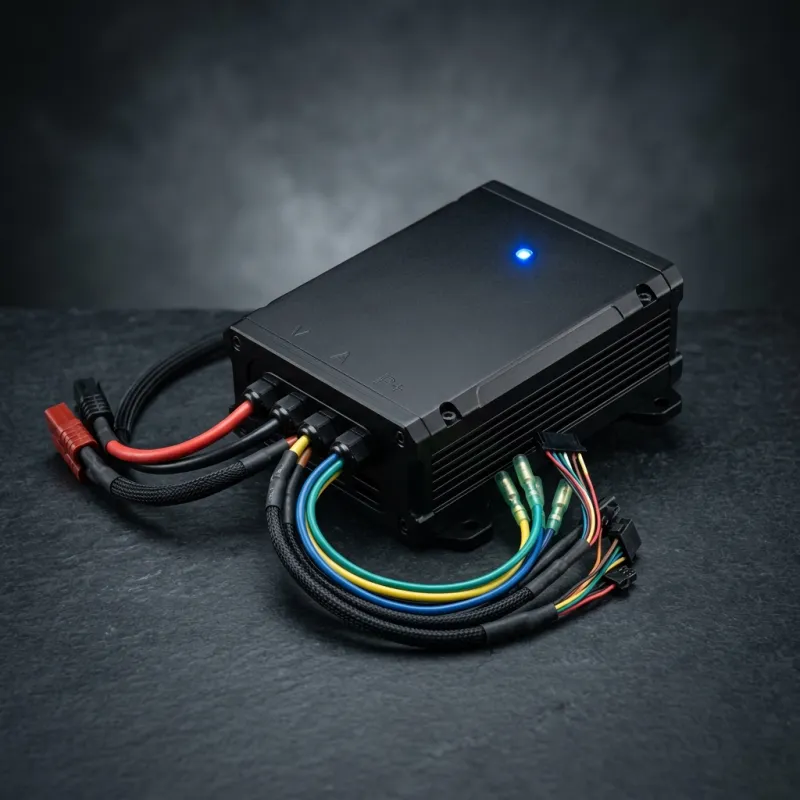

KO Moto Beast Controller V2

The KO Moto Beast Controller V2 is an ultra-high-output electric powertrain controller engineered for riders who demand extreme phase amperage handling, exceptional thermal endurance, and comprehensive smartphone tuning. Built to conquer punishing off-road environments like desert sand dunes, steep hill climbs, and motocross tracks, the Beast V2 eliminates thermal throttling and unleashes massive torque from both stock and upgraded motors.

Featuring an oversized CNC-machined 6061-T6 finned billet aluminum enclosure, the Beast V2 provides extraordinary conductive and convective cooling surface area. High-amperage internal copper busbars and ultra-low RDS(on) MOSFET arrays allow the controller to sustain massive continuous phase currents without overheating.

The Beast V2 connects via Bluetooth to the KO Moto mobile app (iOS/Android), providing deep access to Field-Oriented Control (FOC) mapping, programmable field weakening to extend motor RPM, customizable throttle acceleration curves, multi-stage regenerative braking, and granular safety temperature cutoffs. It features an OEM-matching plug-and-play wiring harness for clean, direct installation.

Thermal Management & Airflow Guidelines: The forward-facing heatsink fins are optimized to capture airflow through the front frame down-tube opening. Ensure wiring bundles do not obstruct the cooling fins, and set motor temperature rollback thresholds in the app to 130°C to protect motor magnet bonding.

Installation & Phase Wire Connections: Turn off the main circuit breaker and discharge capacitors before unbolting the stock controller. Secure the Beast V2 to the frame, connect phase ring terminals firmly with a calibrated torque wrench to 9 Nm, and execute the Hall sensor auto-learn calibration routine in the app.

Companion Modifications: Pair the KO Beast V2 with a heavy-duty DC circuit breaker, an upgraded 72V high-discharge battery pack, and a 420-pitch gold race chain kit to handle extreme low-end torque spikes.

Frequently Asked Questions:

Q: What is the primary advantage of the KO Moto Beast V2 heatsink design? A: The oversized finned billet aluminum enclosure maximizes convective cooling, allowing the controller to sustain high phase currents during long hill climbs without thermal throttling.

Q: Is the KO Beast V2 compatible with the stock Sur-Ron motor? A: Yes. The Beast V2 can safely drive the stock motor on both 60V and 72V setups when calibrated with appropriate current limits in the KO app.

Q: Does the KO Beast V2 support field weakening? A: Yes. Field weakening parameters can be adjusted in the mobile app to extend the motor's top-end RPM range.

Q: Is the KO Beast V2 waterproof for off-road riding? A: Yes. The CNC enclosure is sealed to IP67 waterproof standards with automotive-grade sealed harness connectors.

Q: What tools are required for installation? A: You will need metric hex keys (4mm, 5mm), an 8mm/10mm socket, a torque wrench, and a smartphone for app calibration.

Field Weakening Physics & Stator Cooling: At high motor RPM, the motor's back-EMF opposes battery voltage, naturally limiting maximum speed. The KO Beast V2 utilizes advanced field weakening algorithms that inject opposing magnetic vectors to extend the RPM ceiling while monitoring motor stator thermistors to prevent thermal saturation.

Busbar Geometry & High-Current Phase Distribution: The Beast V2 utilizes solid CNC-machined copper busbars with cross-sectional area exceeding 40 square millimeters, eliminating internal voltage drop and thermal hotspots during continuous 400A+ phase current operation in deep sand.
