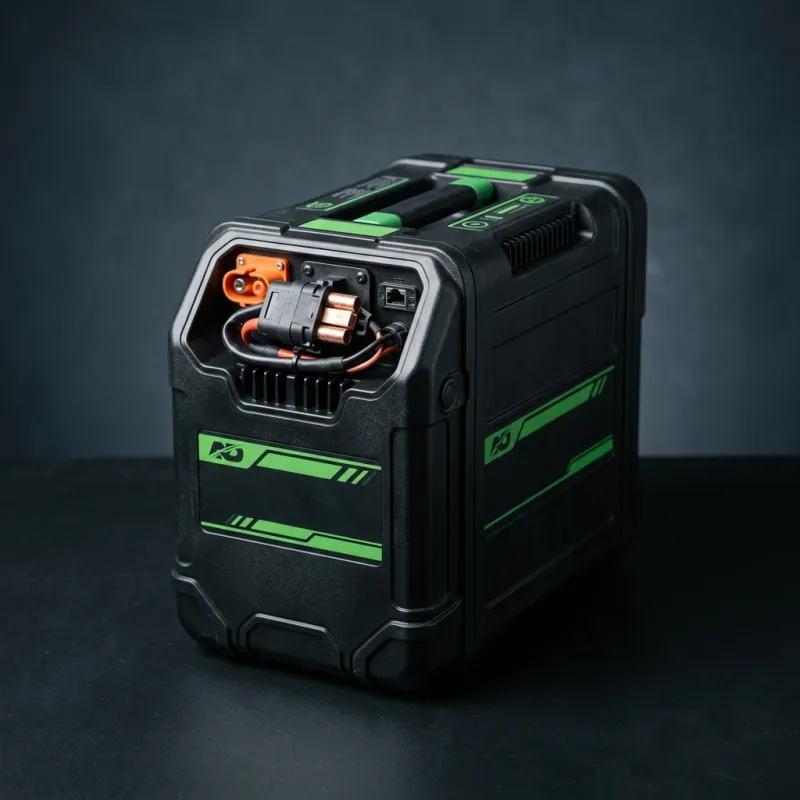

Luna Cycle 72V Sur-Ron Battery Pack

The Luna Cycle 72V Sur-Ron Battery Pack is the definitive power foundation for riders building a high-performance electric dirt bike. Upgrading from the stock 60V architecture to a true 72V nominal platform increases system electrical potential by 20%, unlocking higher motor RPM headroom, eliminating voltage sag under load, and providing massive continuous current to drive high-power aftermarket controllers.

Assembled with premium tier-one high-discharge lithium cells in a rigid, laser-welded matrix, the Luna 72V pack features solid nickel-plated copper busbars that minimize internal resistance. An integrated heavy-duty smart Battery Management System (BMS) with Bluetooth telemetry monitors individual cell bank voltages, internal pack temperatures, and total cycle count, protecting against over-current, over-discharge, short circuits, and thermal runaway.

The battery is encased in a heavy-duty stainless steel and high-impact composite enclosure with rubber vibration dampeners, designed to fit inside the Sur-Ron battery compartment. Heavy-gauge silicone discharge leads with high-current connectors ensure zero electrical bottlenecking between the pack and your motor controller.

Electrical Physics & System Headroom: Elevating battery voltage to 72V nominal (84.0V peak fully charged) allows the motor to produce more mechanical power with lower amperage draw for a given wattage. This reduces resistive heating in the motor windings and controller MOSFETs, extending peak power duration without thermal throttling.

Safety & Storage Protocols: Never attempt to charge a 72V battery with a stock 60V charger; always use a dedicated 72V CC/CV lithium smart charger. Store the pack in a climate-controlled space at approximately 50% to 60% state of charge (74V–76V) when not riding for extended periods.

Controller Compatibility Notice: A 72V battery pack cannot be used with a stock Sur-Ron 60V controller. It must be paired with an aftermarket controller (EBMX X-9000, KO Moto Beast, Nucular 12F) programmed for 72V nominal.

Frequently Asked Questions:

Q: Can I use this 72V battery with the stock factory Sur-Ron controller? A: No. The factory controller is hardware-limited to 60V nominal (67.2V peak) and will shut down with an over-voltage error. An aftermarket controller is required.

Q: What is the peak fully charged voltage of a 72V battery pack? A: A 20S 72V nominal lithium battery reaches 84.0V when fully charged (4.20V per cell group).

Q: Does this battery fit inside the standard Sur-Ron battery tray? A: Yes. The pack is engineered to slide into the factory battery tray, though taller high-capacity models utilize an extended top lid latch to secure the cover.

Q: How long does a full recharge take? A: With a 5A smart charger, a full charge from empty takes approximately 5 to 6 hours. Using a 10A fast charger reduces recharge time to under 3 hours.

Q: How many charge cycles will this battery last? A: Premium tier-one cells provide 500 to 800 full charge/discharge cycles before usable capacity drops to 80% of original rating.

BMS Cell Balancing & Cycle Health: The smart Battery Management System continuously monitors the voltage of each individual 20S cell group. Active cell balancing prevents voltage drift during recharge cycles, ensuring that every cell group operates in its optimal state of charge window for maximum battery lifespan and safety.

Cell Group Isolation & Fire-Retardant Encapsulation: Each parallel cell group is isolated with flame-retardant structural holders and shock-absorbing silicone dampening pads. Heavy-gauge pure nickel busbars are spot-welded with multiple redundant weld points per cell to ensure zero resistance spikes under maximum discharge current.
