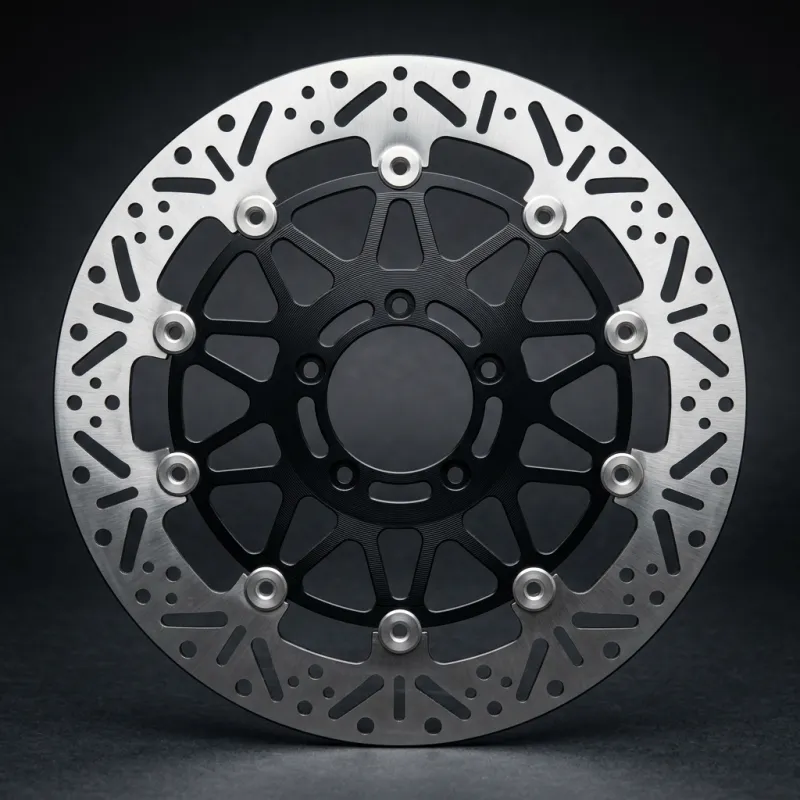

Warp 9 Oversized Front Rotor Kit 220mm

The Warp 9 Oversized Front Rotor Kit 220mm is the most effective braking performance upgrade available for the Sur-Ron platform. Engineered by Warp 9 Racing in Utah, this kit replaces the factory 203mm bicycle-style front rotor with a massive 220mm floating rotor and a precision CNC-machined caliper relocation bracket.

Electric dirt bikes traveling at high speeds generate immense kinetic energy that quickly overwhelms stock 203mm solid rotors, causing severe thermal fade, lever pump, and rotor warping on long mountain descents. The Warp 9 220mm kit expands the effective braking radius, providing 15% more mechanical stopping leverage with significantly less hand effort at the lever.

Floating Carrier Architecture & Heat Dissipation: The outer friction band is laser-cut from high-grade 410 stainless steel, connected to a lightweight 6061-T6 aluminum inner carrier via stainless steel floating rivets. This floating design allows the outer steel ring to expand radially under extreme braking heat (over 500°C) without warping or distorting the inner carrier.

Installation & Bedding Guidelines: Clean the hub mounting surface thoroughly, apply medium blue threadlocker to rotor bolts, and torque in a star pattern to 10–12 Nm. Install the CNC caliper relocation bracket and bed in new brake pads with 10–15 progressive stops before hitting aggressive trails.

Companion Upgrades: Pair the 220mm floating rotor with GritShift sintered metallic brake pads and high-boiling-point brake fluid for fade-free stopping power on long mountain descents.

Frequently Asked Questions:

Q: Do I need a new brake caliper to fit this 220mm rotor? A: No. The kit includes a CNC caliper relocation bracket that spaces your existing brake caliper outward to match the larger 220mm diameter.

Q: What is the advantage of a floating rotor over a solid rotor? A: A floating rotor allows the outer steel friction ring to expand independently under high heat, preventing thermal warping, brake rub, and pulsating levers.

Q: How much more stopping power does a 220mm rotor provide? A: It provides approximately 15% more mechanical stopping torque compared to a standard 203mm rotor due to the increased leverage radius.

Q: What torque specification should be used for rotor bolts? A: Torque rotor mounting bolts in a star pattern to 10–12 Nm using blue threadlocker.

Q: Is this rotor compatible with factory and aftermarket forks? A: Yes. The included bracket fits standard post-mount fork dropouts found on Sur-Ron KKE, FastAce, and RST forks.

Rotor Carrier Metallurgy & Rivet Tolerances: Warp 9's inner carrier is CNC-machined from 6061-T6 aircraft aluminum to minimize unsprung rotational mass. Precision stainless steel floating buttons connect the carrier to the 410 stainless friction ring with controlled radial float, ensuring the rotor runs perfectly true under extreme thermal cycles.

Thermal Runout Prevention & Braking Leverage: Expanding rotor diameter to 220mm increases the leverage arm from the axle center, generating 15% more braking torque for the same caliper piston pressure. The floating rivet design allows the 410 stainless steel outer band to expand independently under high heat, preventing rotor dish distortion and lever shudder.

Floating Rivet Metallurgy & Thermal Dissipation: Stainless steel floating eyelets are engineered with precise lateral float tolerances, allowing the outer friction ring to self-center between brake pads for even pad wear and zero drag. The oversized 220mm leverage arm reduces brake pad temperature accumulation by up to 25% on steep descents.
