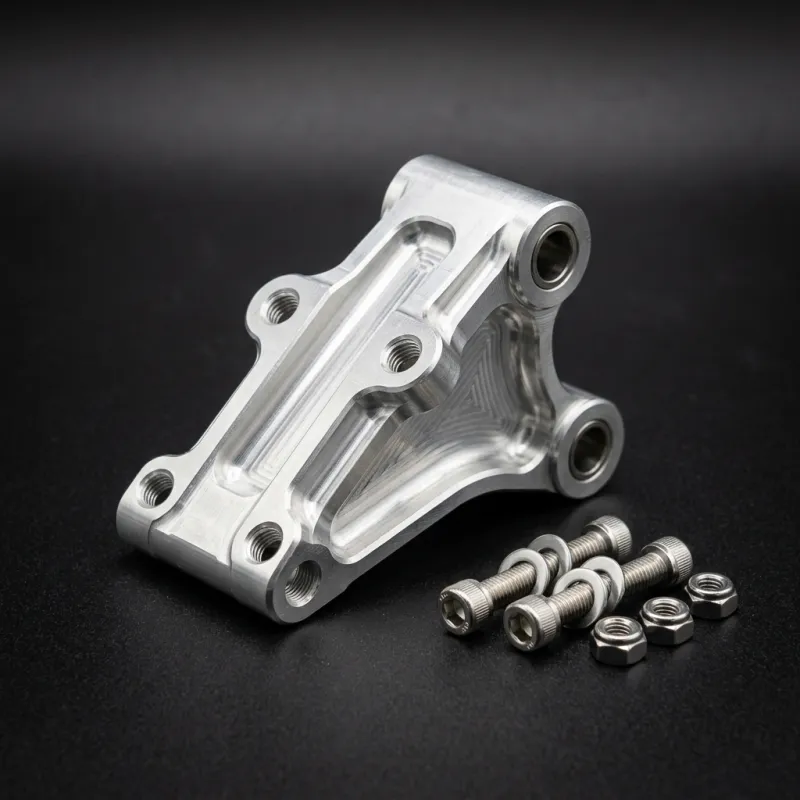

GritShift Pro Peg Brace Kit

The GritShift Pro Peg Brace Kit is the single most critical structural reinforcement upgrade available for the Sur-Ron Light Bee platform. Designed and engineered in Florida by GritShift, this aircraft-grade 7075-T6 billet aluminum cross-brace addresses the most notorious structural failure point on factory electric dirt bikes: snapped footpeg mounting tabs.

The factory Sur-Ron frame utilizes cast aluminum tabs to mount the footpeg brackets. Under the impact forces of an adult rider (especially over 160 lbs) landing jumps, hitting hidden rocks, or bottoming out in deep ruts, these thin cast tabs bend or break off entirely. A snapped frame tab destroys the main frame casting, requiring an expensive full teardown and frame replacement.

The GritShift Pro Peg Brace solves this vulnerability by rigidly connecting the left and right footpeg mounting brackets across the lower frame cradle. By uniting both brackets into a solid boxed sub-structure, landing forces and lateral impacts are distributed evenly across the entire chassis, preventing tab deformation and catastrophic frame failure.

Materials & Engineering: While many aftermarket parts use softer 6061 aluminum, GritShift CNC-machines the Pro Peg Brace from ultra-high-tensile 7075-T6 aluminum (the same alloy used in aircraft bulkheads and military armor), providing nearly double the yield strength.

Installation Best Practices: Installation takes 15 to 20 minutes. Remove the stock footpeg bracket bolts, align the Pro Peg Brace across the frame underside, insert the supplied high-tensile Grade 8 metric hardware with medium blue threadlocker, and torque all fasteners to 25–28 Nm.

Rider Advisory: The Pro Peg Brace is considered mandatory safety insurance for any rider who weighs over 160 lbs, jumps their bike, or rides aggressive rock-strewn trails.

Frequently Asked Questions:

Q: Why is the GritShift Pro Peg Brace considered mandatory for Sur-Ron bikes? A: Factory footpeg brackets attach to thin cast aluminum frame tabs that can snap under jump landings or heavy rider weight, ruining the frame. The brace ties both sides together to eliminate this failure point.

Q: What material is the GritShift Pro Peg Brace made from? A: It is precision CNC-machined from ultra-high-strength 7075-T6 billet aircraft aluminum.

Q: Can I install this brace alongside aftermarket footpegs? A: Yes. The brace fits seamlessly with stock pegs as well as aftermarket billet pegs like Warp 9.

Q: Does the peg brace reduce ground clearance? A: No. The brace tucks tightly against the lower frame contour above the skid plate plane, preserving full ground clearance.

Q: What torque specification should be used for the mounting bolts? A: Torque the supplied Grade 8 mounting bolts to 25–28 Nm using blue threadlocker.

Chassis Stress Dissipation & Tab Protection: When an adult rider lands from a jump, immense downward kinetic energy is transferred through the footpeg brackets. Without a brace, these forces act as leverage arms that can bend or snap the thin cast aluminum frame tabs. The 7075-T6 Pro Peg Brace creates a closed structural loop that dissipates these loads safely across both sides of the chassis.

Grade 8 Metric Hardware & Anti-Vibration Assembly: The kit includes zinc-plated Grade 8 high-tensile steel mounting bolts engineered to withstand high shear forces. Installing with medium-strength threadlocker prevents fasteners from backing out under severe motor and trail harmonics.
